8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications

  • 8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications
  • 8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications
  • 8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications
  • 8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications
Luogo di origine Jiangsu, Cina
Marca VIC-TECH
Certificazione RoHS
Numero di modello PM08-002
Quantità di ordine minimo 1
Prezzo $2-6.50

Contattimi gratis campioni e buoni.

鎮ㄨ鎵剧殑璧勬簮宸茶鍒犻櫎銆佸凡鏇村悕鎴栨殏鏃朵笉鍙敤銆:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Diametro del motore 8 mm Altezza del motore 9.2MM
Diametro dell'albero 0,8 mm Lunghezza dell'albero 4 mm
Fase 2 Fabbricazione a partire da fili 4
Tensione nominale CC 3,3 V Corrente alla fase 385 mA
Angolo del passo 18 gradi Passi per rivoluzione 20
Diametro della madrevite φ3,5 mm Cavo della madrevite 0,3 mm
Viaggio lineare per punto 0,0015 mm/passo Resistenza alla fase 200,4Ω±10%
Induttanza per fase 5,0 mH ± 20%
Evidenziare

385mA Current Micro Stepper Motor

,

DC3.3V Rated Voltage Miniature Stepper Motor

,

18 Degree Step Angle PM Stepper Motor
Lasciate un messaggio
Descrizione di prodotto
8mm Diameter 2-phase 4-wire Micro Stepper Motor with Copper Gear

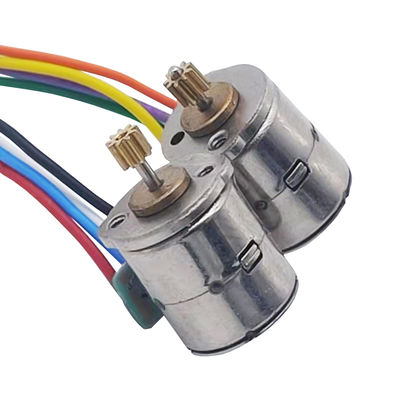

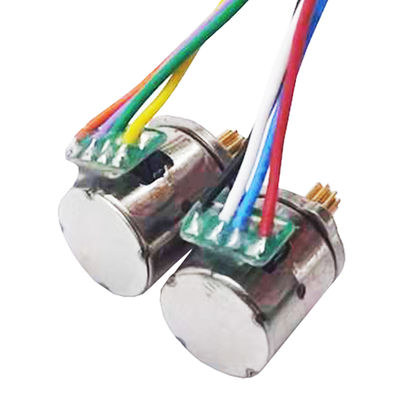

8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications 0 8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications 1

The PM08-2 is a micro stepper motor featuring 2-phase 4-wire configuration. This miniature stepper motor is designed for precision applications with its compact dimensions (8mm diameter, 9.2mm height excluding bearing sleeve).

Key Features
  • Rated Voltage: DC3.3V
  • Output shaft diameter: 0.8mm (4mm length above belt gear)
  • Basic step angle: 18 degrees (20 steps per revolution)
  • Includes 2 motors with common wiring (can be separated)
  • Ideal for camera focusing systems and precision applications
Applications
This high-precision miniature stepper motor is widely used in:
  • Camera systems and optical instruments
  • Lens mechanisms and flashlights
  • Precision medical equipment
  • Automatic door locks
  • Other compact motion control applications
Product Images

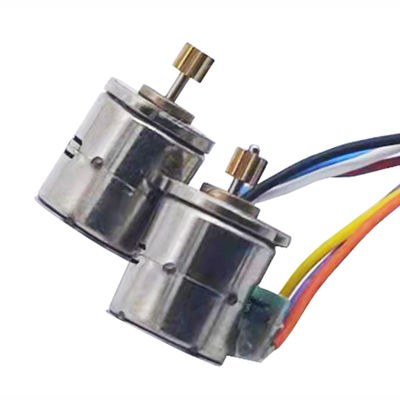

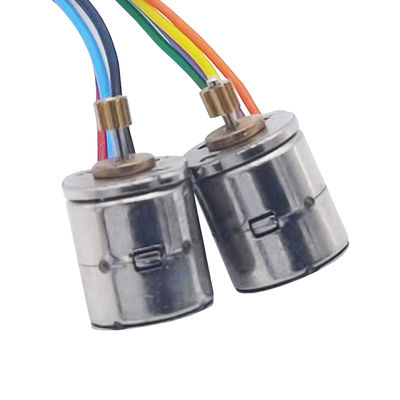

8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications 2 8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications 3
Design Layout (Unit:mm)
8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications 4
Specifications
Motor diameter 20mm
Motor type Hybrid stepper motor
Lead screw diameter φ3.5mm
Lead screw lead 0.3mm
Linear travel per step 0.0015mm/step
Motor's phase 2
Step angle 1.8 degree
Rated voltage 5V
Rated current/phase 0.24A
Resistance/phase 20.4Ω±10%
Inductance/phase 5.0mH±20%
Insulation resistance 100MΩ（500VDC）
Insulation class B
Heat rise 80℃
Minimal Thrust /300pps 2.4KG
Packing & Delivery
8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications 5

Selling Units: Single item in plastic box, outer paper box packaging

Package: Single carton packing, 100-1000 pieces per box

Lead Time: 30 Days After Deposit
